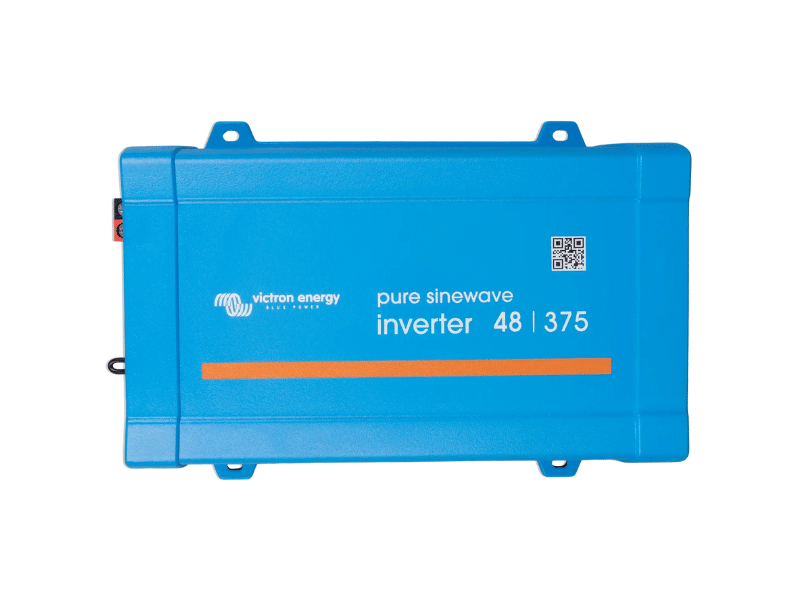

Victron Phoenix 375VA 48V Inverter VE.Direct; 300W Continuous Power, 700W Peak, Pure Sine Wave, ECO Mode, Remote On/Off
The Victron Phoenix 48/375 Inverter VE.Direct is a reliable pure sine wave inverter that delivers clean 230V AC power from a 48V DC battery. With a continuous output of 300W and peak power of 700W, it is suitable for powering small appliances and sensitive electronics in off-grid, backup, and mobile applications. The inverter supports VE.Direct communication for remote monitoring and configuration, ECO mode for improved energy efficiency, and a remote on/off terminal for integration into control systems.
Model: Victron Phoenix Inverter 48/375 VE.Direct
Continuous Output Power at 25°C: 375VA
Output Power at 40°C: 300W
Peak Power: 700W
Input Voltage Range: 36.8V – 62.0V DC
Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (configurable)
Max Efficiency: 90%
Zero-load Power Consumption: 8.5W (1.4W in ECO mode)
DC Connection: Screw terminals (tool-free installation)
Dimensions (H x W x D): 86 x 165 x 260 mm
Weight: 3.0 kg
Cooling: Natural convection
IP Rating: IP21
Operating Temperature: –40°C to +65°C (derating above 40°C)
