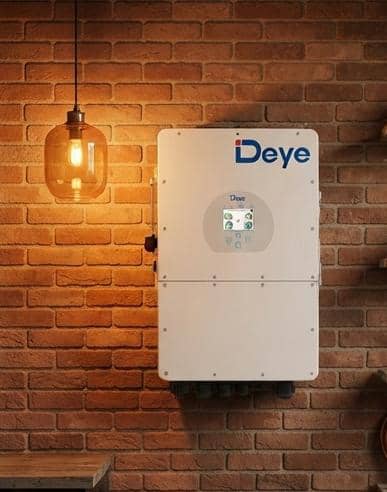

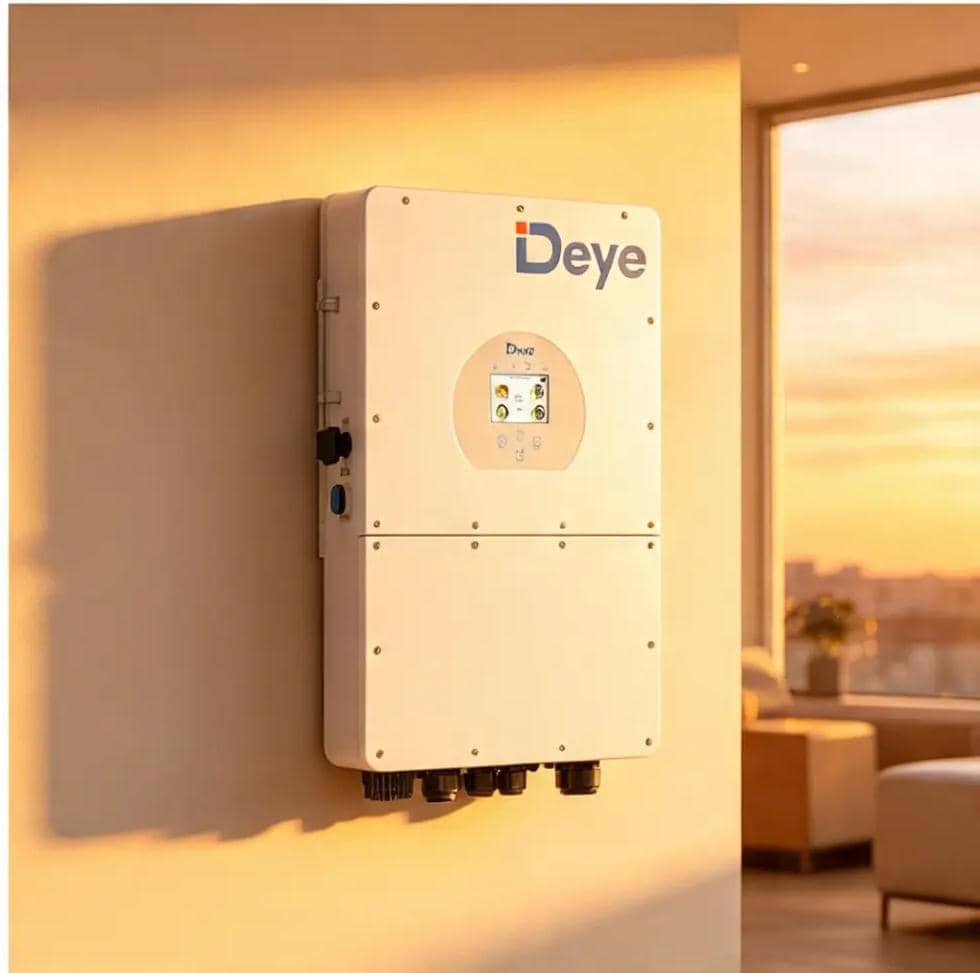

The Deye 16kW (16kVA) 48V 3-Phase Hybrid Inverter (specifically model SUN-16K-SG05LP3-EU-SM2) is a heavy-duty, commercial-grade power management solution. It bridges the gap between large solar arrays, standard 3-phase grid infrastructure, and cost-effective 48V low-voltage battery banks.Key Technical SpecificationsPower Output: 16,000W continuous active power with a 32,000W peak surge capacity (for 10 seconds) to handle inductive motor startup loads.Battery Support: 48V low-voltage (LV) configuration compatible with standard Lithium-ion and Lead-Acid battery banks.Charge/Discharge Efficiency: Features a massive maximum charging and discharging current capacity ranging from 290A to 350A.Solar Inputs: Dual MPPT trackers with a wide input voltage range (160V–650V) for optimal solar panel configuration.Enclosure Rating: IP65 dustproof and waterproof casing, making it suitable for both indoor and outdoor installations.Standout Advantages100% Unbalanced Phase Output: This allows each phase to function independently, delivering up to 50% of the inverter's rated power to a single phase when demand fluctuates.Low-Voltage Battery Safety: Utilizing a 48V battery bank instead of high-voltage (300V+) alternatives vastly reduces the risk of DC arc faults, fires, and safety hazards during maintenance.High Scalability: Supports parallel stacking of up to 10 to 16 units for heavy commercial or industrial multi-phase expansion.Smart Grid & Generator Coupling: Easily integrates with existing solar infrastructure via AC coupling, and features native support to store and regulate energy from diesel generators.Time-of-Use Management: Includes a programmable 6-time-slot schedule for battery charging and discharging to capitalize on off-peak grid utility rates.To ensure this setup fits your needs, could you share a bit more context?Do you plan to pair this with a specific brand of lithium batteries? (e.g., Deye, Shoto, Pylontech)Are you planning a completely off-grid system, or will you be grid-connected?What is the total kilowatt-peak (kWp) of solar panels you intend to connect?Providing these details will help outline an optimal system configuration.
