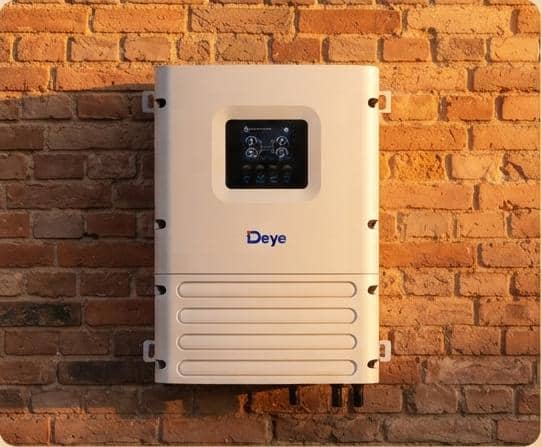

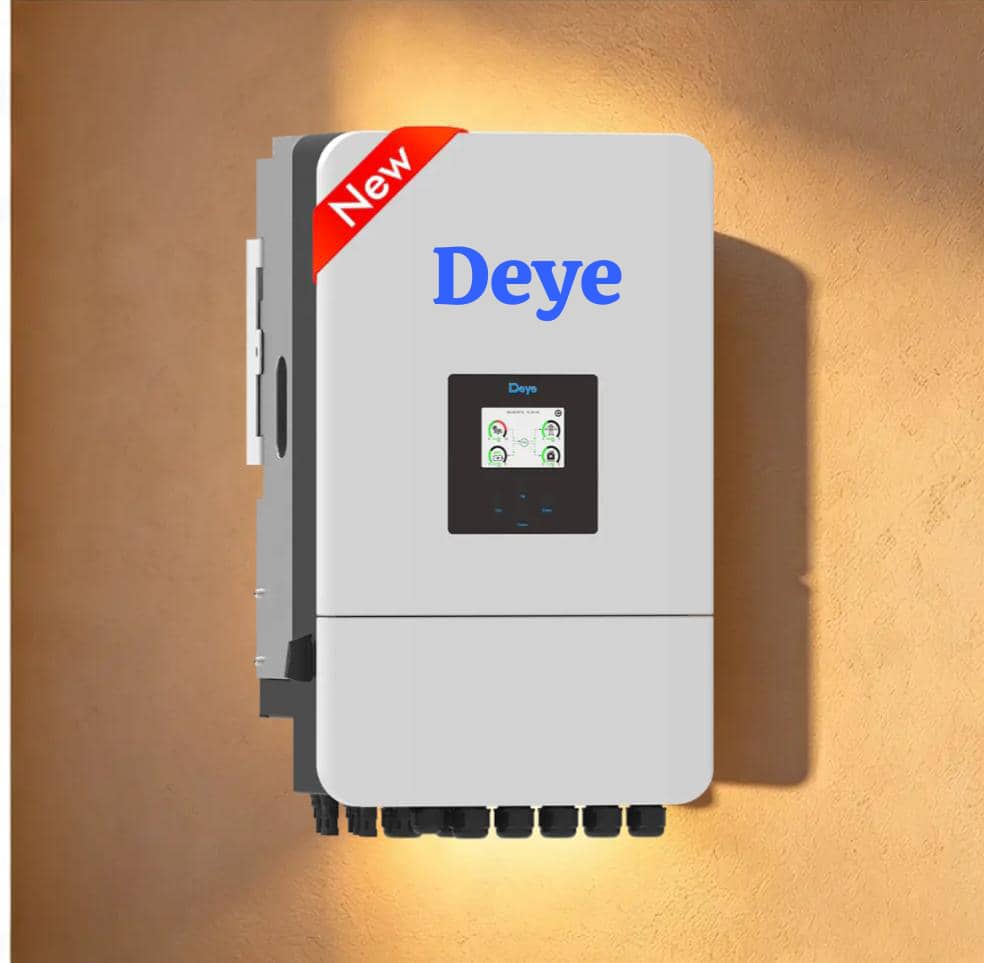

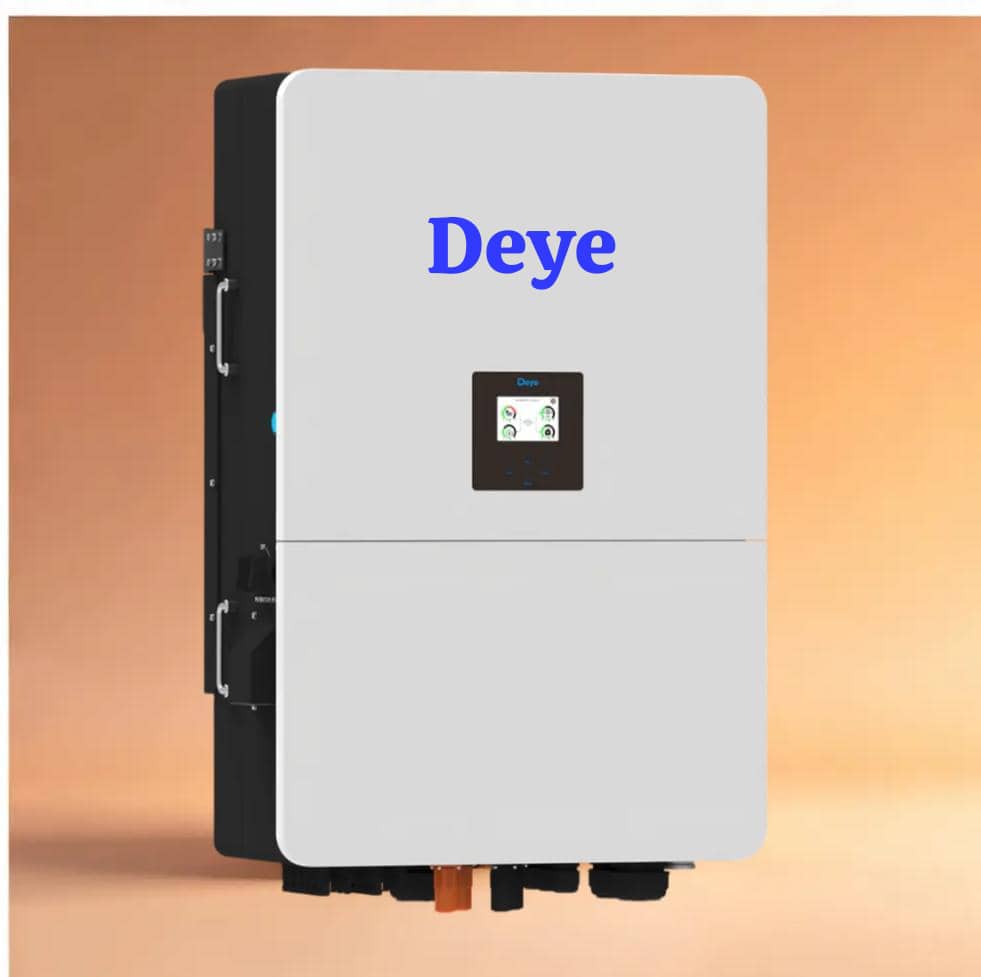

The Deye 80kW Three-Phase Hybrid Inverter (Model: SUN-80K-SG02HP3-EU-EM6) is a heavy-duty Commercial & Industrial (C&I) solar inverter capable of delivering 80,000 Watts of continuous AC power.Important Technical Clarification: While standard low-voltage Deye inverters run on a 48V battery bank, this specific 80kW model is a High-Voltage (HV) system that requires a battery string voltage ranging from 160V to 1,000V. It is not compatible with standard 48V batteries.Key Technical SpecificationsAC Rated Power: 80,000W (80kW / 80kVA) continuous output.Max Solar Input: Up to 128,000W (128kW) PV input power (allowing for 2x oversizing).MPPT Trackers: 6 independent MPPT trackers with 12 total string inputs.Battery Voltage Range: 160V to 1,000V DC (High Voltage).Max Charge/Discharge Current: 160A.Protection Rating: IP65 weatherproof casing.Core CapabilitiesTrue Hybrid Energy Management: Intelligently balances and paths power dynamically between solar arrays, high-voltage battery storage, the utility grid, and backup diesel generators.UPS-Level Switching: Switches seamlessly from grid power to battery backup in under 4ms during a power outage.Scalability: Supports parallel clustering of up to 10 identical units, reaching a maximum system capacity of 800kW for massive power needs.Smart Grid Support: Can be programmed to store cheap, off-peak electricity from the grid and discharge it or feed it back during peak-rate periods.Would you like assistance in choosing compatible high-voltage battery racks (such as the Deye BOS-A or BS series) for this unit, or do you need a complete balance-of-system design for your commercial installation?
