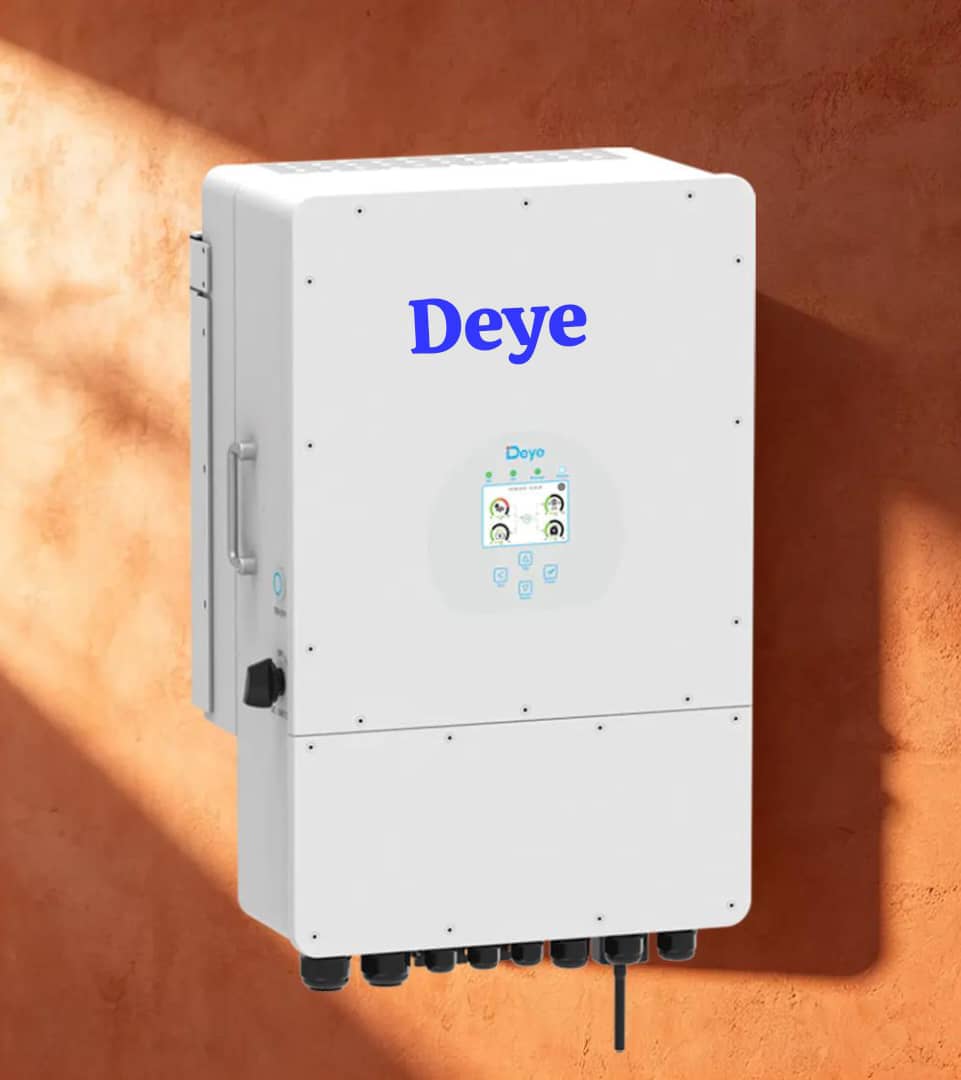

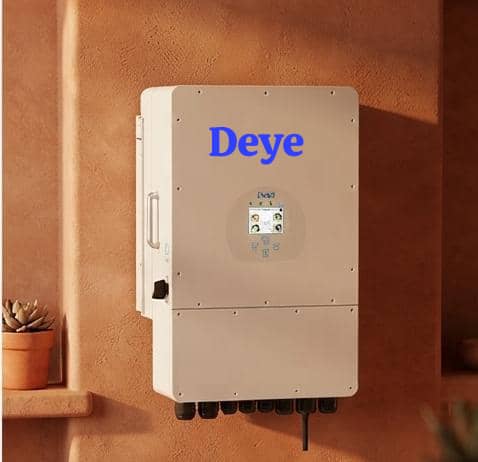

Deye 10kVA/10kW 48V Single Phase Hybrid Inverter SUN-10K-SG05LP1-EU-SM2; 20/16kWp PV Access/Input, 500Vdc, 150–425V MPPT Range, 210A Charge/Discharge, WiFi/4G Monitoring, IP65
Strong PV Handling: Supports up to 20kWp PV access / 16kWp PV input with dual MPPT trackers.
High Current Capability: 210A charging/discharging current, designed for lithium battery banks.
Pure Sine Wave Output: Stable 230Vac power for sensitive electronics and essential appliances.
Flexible Hybrid Operation: Compatible with solar, grid, or diesel generator input with automatic switchover.
Scalable Design: Supports parallel connection of up to 16 units for larger on-grid or off-grid projects.
Smart Battery Management: Up to 6 programmable charging/discharging periods to optimise storage and usage.
Comprehensive Protection: Built-in surge, reverse polarity, short-circuit, thermal, insulation monitoring, residual current, and anti-islanding.
Remote Monitoring: WiFi/4G/GPRS/LAN support with colourful touch LCD control panel.
High Efficiency: Transformerless design with >97.6% maximum efficiency and >99% MPPT efficiency.
Durable Outdoor Build: IP65-rated enclosure, lightweight 26.8kg design, and low noise (<30 dB).
