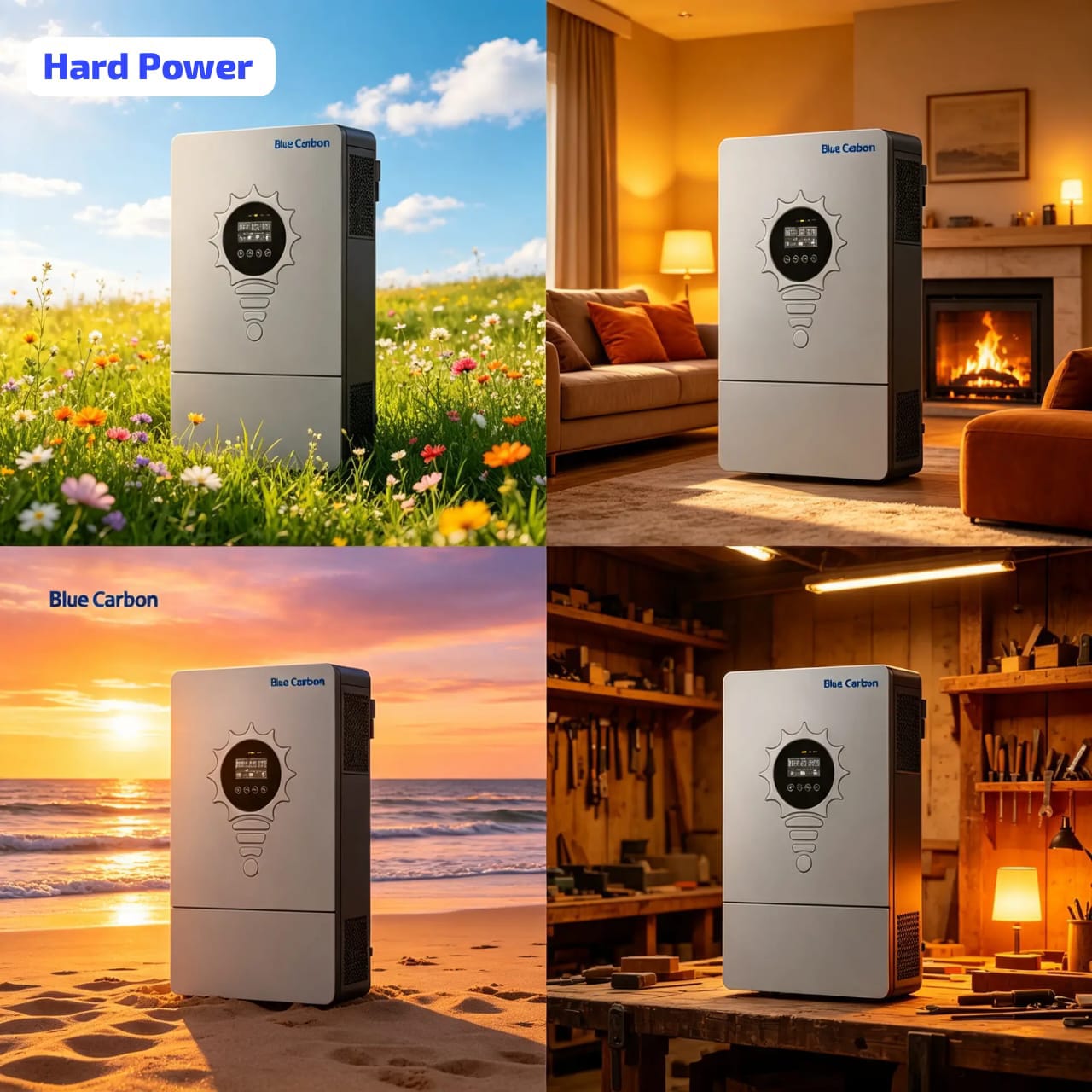

The Blue Carbon 6kVA (6kW) 48V Hybrid Inverter (often listed under model numbers like BCT-FXC-6KW-H-P) is a highly versatile, single-phase power system. It integrates a high-frequency pure sine wave inverter, an advanced MPPT solar charge controller, and a high-speed UPS module into a single unit. This makes it an ideal choice for residential energy self-consumption, backup power, and light commercial setups
Core Specifications
Rated Output Power: 6kW (6,000 Watts) with a 1.0 power factor
Nominal Battery Voltage: 48V DC (optimized for modern LiFePO₄ and lithium-ion batteries)
Output Waveform: Pure Sine Wave (safe for sensitive electronics like TVs, computers, and medical equipment)
Output Voltage: 208 / 220 / 230 / 240 VAC single-phase
Solar (PV) Input & MPPT Charging
Maximum PV Input Power: 6,000 Watts
MPPT Voltage Range: 120V to 450V DC
Maximum PV Open Circuit Voltage (\(V_{oc}\)): 500V DC
Efficiency: Features an MPPT tracking efficiency up to 99.9% and a peak conversion efficiency of up to 97.5% to maximize energy harvest.
Key Features
🔋 Flexible Battery Operation: Supports hybrid operations with or without a battery bank connected. It seamlessly communicates with intelligent Battery Management Systems (BMS) via CAN/RS485 protocols.
🔄 Parallel Scalability: Depending on the exact sub-variant, it supports parallel stacking of up to 6 or 9 units, allowing you to expand your system capacity as your power demands grow.
💻 Smart Monitoring: Comes with an LCD control panel and options for Wi-Fi or USB monitoring to track power generation and consumption in real-time.
Dual AC Output: Includes dual AC outputs for independent load distribution, ensuring critical household appliances stay powered during transitions.
