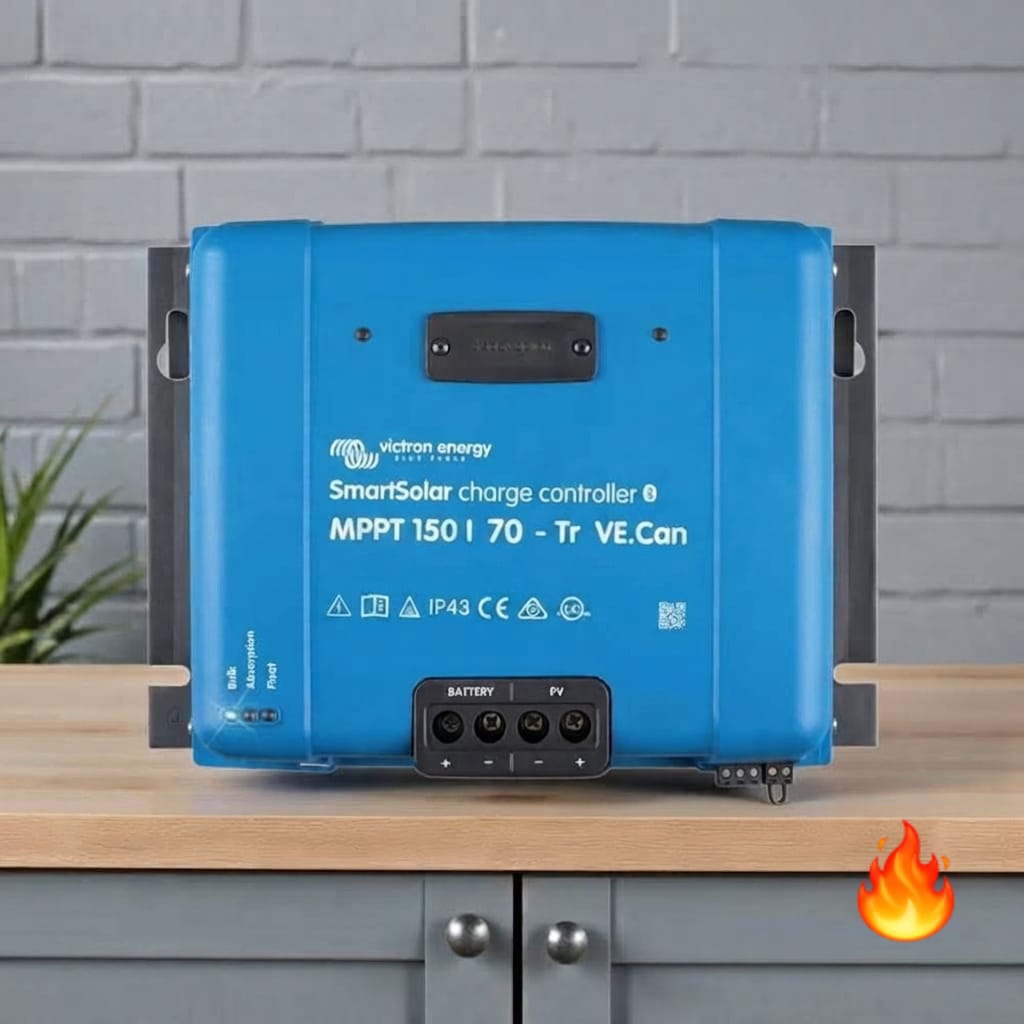

The Victron SmartSolar MPPT 150/70 is an ultra-fast Maximum Power Point Tracking solar charger that handles a maximum 150V open-circuit solar panel voltage and delivers up to a 70A charging current for 12V, 24V, 36V, or 48V battery banks.
The Victron SmartSolar MPPT 150/70TR is a high-performance solar charge controller designed to optimize energy harvesting from solar panels. Here are its key features:
- *Ultra-Fast MPPT Technology*: Continuously monitors voltage and current output to extract maximum power from solar panels, especially beneficial in changing light conditions.
- *Remote Monitoring & Control*: Connect via Bluetooth using the VictronConnect app for real-time adjustments and monitoring.
- *Wide Voltage Range*: Compatible with 12V, 24V, 36V, and 48V battery systems.
- *High Current Output*: Supports up to 70A of charge current.
Specifications:
- Maximum PV Open Circuit Voltage: 150V
- Maximum Charge Current: 70A
- Operating Temperature Range: -30°C to +60°C
- Dimensions: 185 x 250 x 95mm
- Weight: 3 kg / 6.6 lbs
