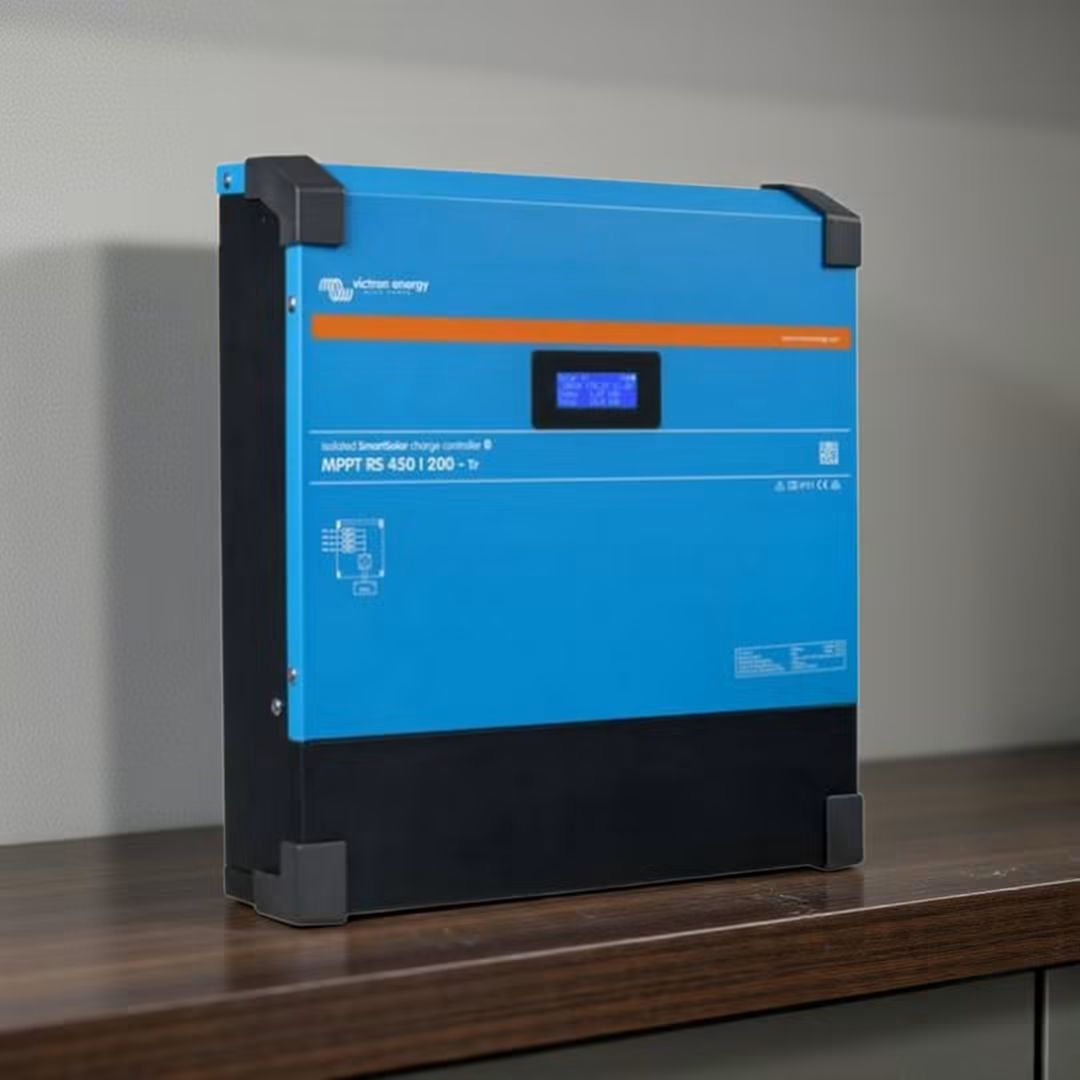

The Victron SmartSolar MPPT RS 450/200 is a premium, high-voltage solar charge controller engineered specifically for 48V battery systems in large residential, commercial, or off-grid setups. It handles an ultra-high photovoltaic (PV) input voltage of up to 450 VDC and delivers a massive 200 Amps of charging current
The Victron SmartSolar MPPT 450/200 is a high-performance solar charge controller designed for large-scale solar systems. Here are its key features:
- *Ultra-Fast MPPT Technology*: Ensures maximum energy production, even in partially shaded conditions, with up to 98% efficiency.
- *Wide Voltage Range*: Compatible with 24V and 48V battery systems and accepts high voltage inputs up to 450V.
- *High Current Output*: Supports up to 200A of charge current.
- *Bluetooth Connectivity*: Allows for wireless monitoring and configuration via the VictronConnect app.
*Specifications:*
- Maximum PV Open Circuit Voltage: 450V
- Maximum Charge Current: 200A
- Operating Temperature Range: -40°C to +60°C
- Dimensions: 350mm x 424mm x 145mm
- Weight: 13.5kg
